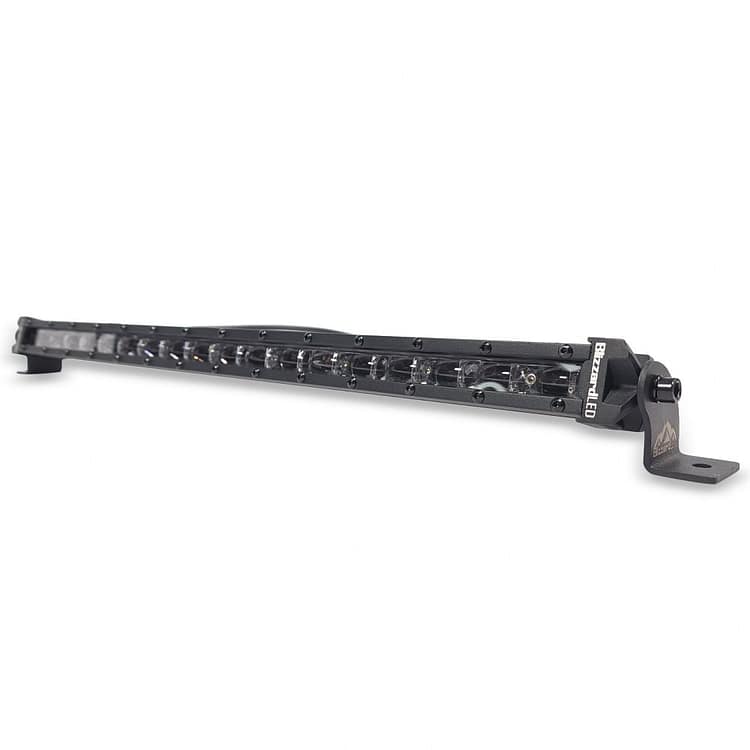

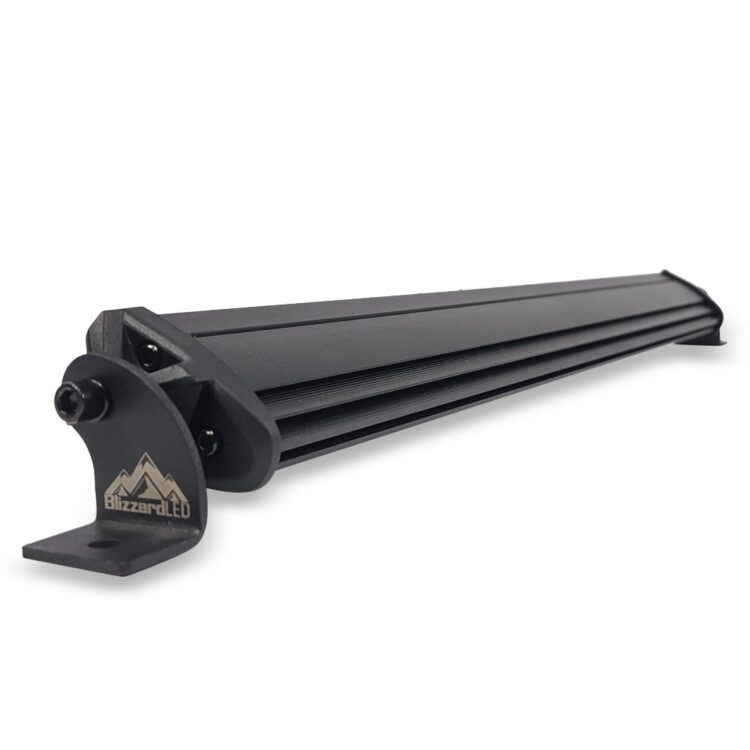

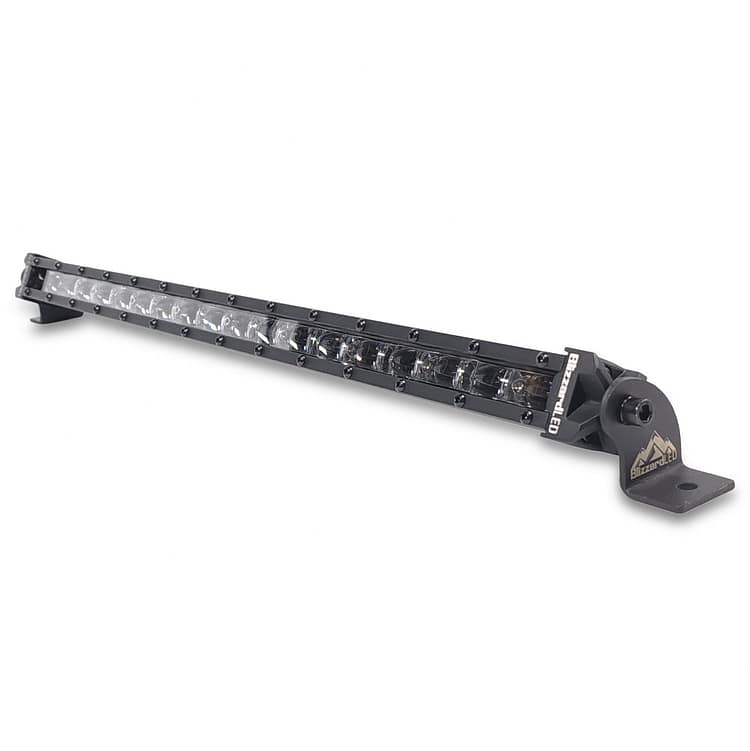

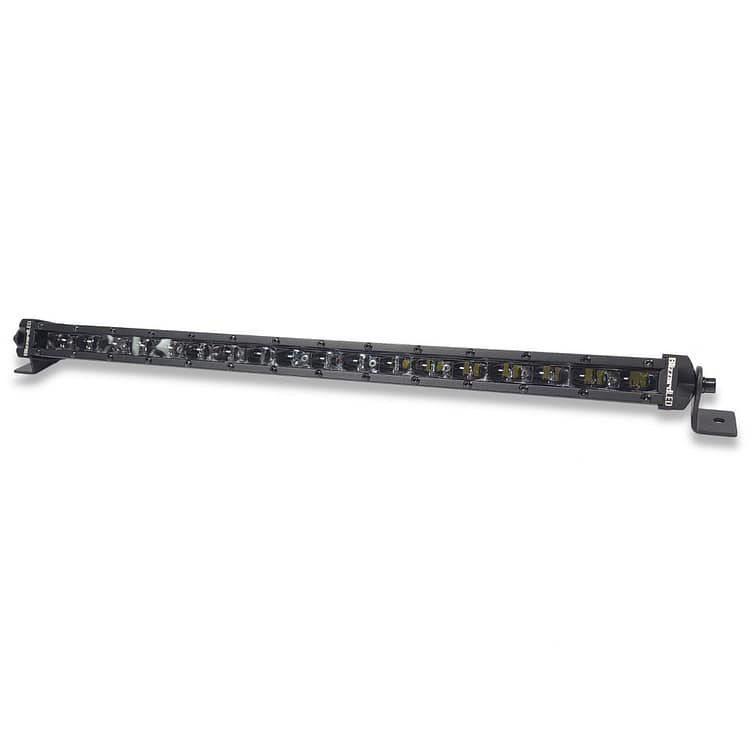

Compact Series 20″ Single Row 90w LED Lightbar – Straight

Description

BlizzardLED’s compact series LED lightbars are inspired with the off-roader in mind. The 20″ single row light bars are designed for maximum output in a low profile and compact package. Utilizing 18, 5w high intensity LEDs and unique 6D reflectors, this 20″ 90w LED light bar ensures a highly efficient and focused beam. Our compact series also features a slim, sleek aluminum housing with meticulously engineered fins to dissipate heat that increases life span and durability. All of our compact series LED lightbars are backed by a proven manufacturer defect warranty so you can rest assured, you’re covered when life throws you a curve ball.

Compact 20″ Single Row Features:

• 20″ in size
• Operating Voltage: 10-30V DC
• 5w each CREE XTE LED chip
• 6D reflector
• 45° driving beam pattern
• 1 LUX @ 225M
• 9900 Lumen
• Black aluminum housing
• 6000K Color Temperature
• PMMA Lens
• IP67 Certified
• -40C – 85C degrees Working Temperature
• 50000+ hours lifespan

What’s in the box:

• One (1) LED light bar
• Universal Compact Series Light Bar Bracket Set

Installation:

We made sure installation of our compact series LED light bars would be a breeze. Every LED light bar is equipped with pre-stripped wire pig tail to easily connect with any of our wiring harnesses.

Mounting:

BlizzardLED compact series light bars come with a color matching Universal Compact Series Light Bar Bracket Set and mounting hardware.

DOT Notice: This is an aftermarket part and as such, is NOT D.O.T. approved. Do not use if D.O.T. is required. Before installing this product, please check your state/provincial and local/municipal laws and regulations.
